The Frameless



TFHFR-75W-1050-DIM

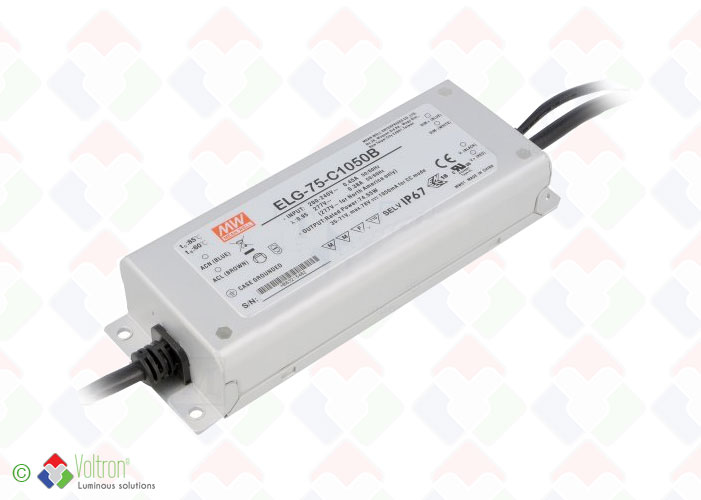

VOLTRON® The Frameless > accessories : LED power supply from the brand MeanWell. Class I, with an efficiency of 90%, up to >50.000h. Type ELG-75-C1050B - Constant Current 1050mA - 75W - IP67 - 5 years warranty - 3 in 1 dimmable (0~10Vdc, 10V PWM en Triac). In combination with The Frameless.


Wattage
75W
IPwaarde
67
Voltage
1050mA
Dimbaar
Yes
Lengte
18CM
Hoogte
3,55CM
Breedte
6,3CM
garantie
5

All product specifications for : TFHFR-75W-1050-DIM


Productnumber
TFHFR-75W-1050-DIM
Barcode
LH-1415
IP value
67
Voltage
1050mA
Wattage
75W
Length
18CM
Width
6,3CM
Height
3,55CM
Finish color
Silver
Dimmable
Yes
Cable length
2x30CM
Gross weight
800GR
Net weight
800GR
Constant current
Yes
Packed per
1
Full package
16

Specification text with product code

Type : The Frameless / productnumber : TFHFR-75W-1050-DIM
LED power supply - Power: 74.55 Watt - Input range: 100 ~ 305 Vac - Output range: 1050mA - Enclosure: LED Enclosed Metal - Enclosure size: 180x63x35.5 mm - Outer packaging Quantity: 16 pieces - Warranty: 5 years - Certification: CE - Cooling: Free Air Circulation - Protection: Short circuit - IP Score: IP67 - 3 in 1 dimmable by 0 ~ 10Vdc, 10V PWM and Triac Merk = Voltron®, producttype : The Frameless, bestelcode=TFHFR-75W-1050-DIM
Inrush current = COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410, SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67; GB19510.1, GB19510.14 approved,Compliance to EN55015,EN61000-3-2 Class C (@load≧50%) ; EN61000-3-3; GB17743, GB17625.1, Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level(surge immunity:Line-Earth:6KV,Line-Line:4KV)

Specification text without product code

LED power supply - Power: 74.55 Watt - Input range: 100 ~ 305 Vac - Output range: 1050mA - Enclosure: LED Enclosed Metal - Enclosure size: 180x63x35.5 mm - Outer packaging Quantity: 16 pieces - Warranty: 5 years - Certification: CE - Cooling: Free Air Circulation - Protection: Short circuit - IP Score: IP67 - 3 in 1 dimmable by 0 ~ 10Vdc, 10V PWM and Triac
Inrush current = COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410, SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent, EN62384; IP65 or IP67; GB19510.1, GB19510.14 approved,Compliance to EN55015,EN61000-3-2 Class C (@load≧50%) ; EN61000-3-3; GB17743, GB17625.1, Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level(surge immunity:Line-Earth:6KV,Line-Line:4KV)
Only use LED power supply for The Frameless panels.
