The Frameless



TFHFR-60W-IP20-1050-DIM

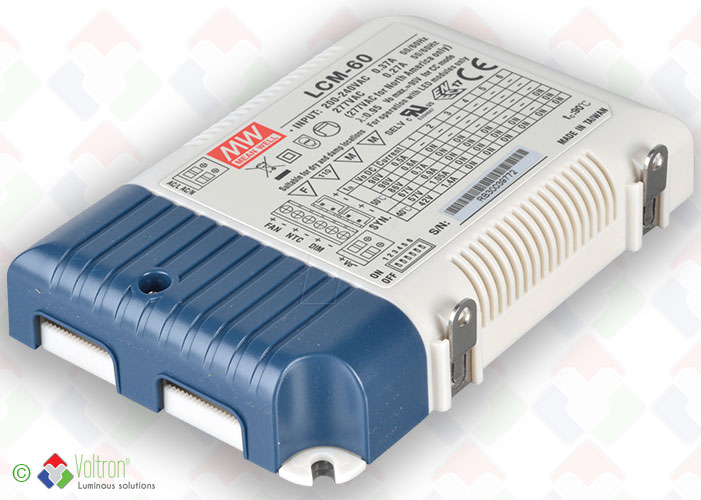

VOLTRON® The Frameless > accessories : LED power supply from the brand MeanWell. Class II, with an efficiency of 90%. Type LMC-60 - Constant Current 1050mA - 60W - IP20 - 3 years warranty - 3 in 1 dimmable (0~10Vdc, 10V PWM en Triac). In combination with The Frameless.


Wattage
60W
IPwaarde
20
Voltage
1050mA
Dimbaar
Yes
Lengte
10,5CM
Hoogte
2,3CM
Breedte
6,8CM
garantie
3

All product specifications for : TFHFR-60W-IP20-1050-DIM


Productnumber
TFHFR-60W-IP20-1050-DIM
Barcode
LH-1428
IP value
20
Voltage
1050mA
Wattage
60W
Length
10,5CM
Width
6,8CM
Height
2,3CM
Finish color
White
Dimmable
Yes
Gross weight
400GR
Net weight
400GR
Constant current
Yes
Packed per
1
Full package
32

Specification text with product code

Type : The Frameless / productnumber : TFHFR-60W-IP20-1050-DIM
LED power supplies - Power: 60 Watt - Input range: 180 ~ 295 Vac - Output range: 500, 600, 700, 900, 1050, 1400 mA - Enclosure: LED Enclosed Plastic - Enclosure size: 123.5x 81.5x 23 mm - Warranty: 3 Years - Certification: CE - Cooling: Free Air Circulation - Protection: Short circuit - Potted: No - IP Score: IP20 - 3 in 1 dimmable by 0 ~ 10Vdc, 10V PWM and Triac Merk = Voltron®, producttype : The Frameless, bestelcode=TFHFR-60W-IP20-1050-DIM
Inrush current = COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410, SAFETY STANDARDS: UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,GB19510.14,GB19510.1 approved,Compliance to EN55015, EN61000-3-2 Class C(@load>=40%) ; EN61000-3-3; GB17625.1,GB17743,Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Line 2KV)

Specification text without product code

LED power supplies - Power: 60 Watt - Input range: 180 ~ 295 Vac - Output range: 500, 600, 700, 900, 1050, 1400 mA - Enclosure: LED Enclosed Plastic - Enclosure size: 123.5x 81.5x 23 mm - Warranty: 3 Years - Certification: CE - Cooling: Free Air Circulation - Protection: Short circuit - Potted: No - IP Score: IP20 - 3 in 1 dimmable by 0 ~ 10Vdc, 10V PWM and Triac
Inrush current = COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410, SAFETY STANDARDS: UL8750, CSA C22.2 No.250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent,GB19510.14,GB19510.1 approved,Compliance to EN55015, EN61000-3-2 Class C(@load>=40%) ; EN61000-3-3; GB17625.1,GB17743,Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Line 2KV)
Only use LED power supply for The Frameless panels.
